Description

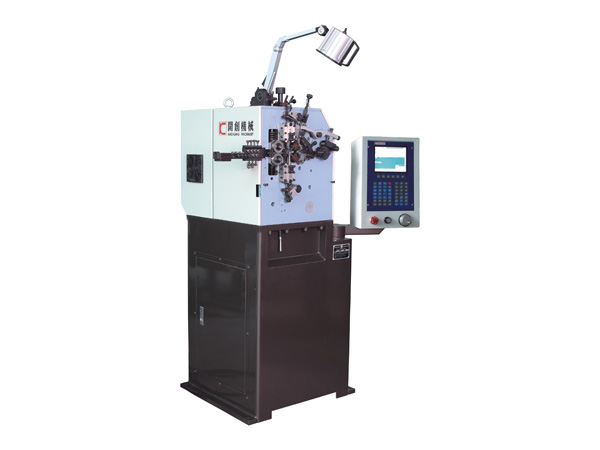

KCT-8C 2 Axis High-speed CNC spring coiling machine, referred to as the 08-type compression spring machine or 08-type spring machine, processing line diameter is φ0.15-0.8mm, suitable for processing all kinds of precision compression spring, torsion spring and a tension spring spring such as simple products, such as compression spring, spring, spring, spray tower spring, electronic battery spring, spring, spring toys, keyboard magazine, spring lighting spring, oil seal spring, spring, spring and gastroscope probe precision spring etc..
Parameters
| 機 型 | Model | KCT-8C |
| 軸 數 | Axis Count | 2 軸 |
| 加工線徑 | Wire Size Range | φ0.15-0.8mm |
| 最大彈簧外徑 | Max Outside Diameter | φ20mm |
| 最大送線長度 | Max Feeding Length | Unlimited(無限) |
| 最大送線速度 | Max Feeding Speed | 150m/min |
| 最大生產速度 | Max production Rate | 400pcs/min |
| 送線輪組數 | Wire Eeeding Wheel Count | 1 pairs（組） |
| 送線伺服電機 | Feeding Servo Motor | 0.75kw |
| 凸輪伺服電機 | Cam Servo Motor | 0.75kw |
| 送線指令值 | Feeding Length Value | ±0.1～±9999.99 |
| 凸輪指令值 | Cam setting Value | ±0.1°～±359.9° |
| 機器尺寸 | Demension(LxWxH) | 660x800x1400mm |
| 機器重量 | Weight | 350kg |
| 電 源 | Power AC | 3-380VAC 50Hz |
Our company's KCT-8C 2 Axis High-speed spring coiling machine adopts the Taiwan computer control system, uses the Japanese industrial servo motor and the high precision bearing and so on, and has the left, right direction turret and torsion spring device (another need to match). The models ( 08-type compression spring machine ) standard for two axis, free spool and camshaft, independent or synchronous operation, has high forming speed, stable performance and high accuracy. In addition, the KCT-8C computer compression spring machine's computer system has memory storage function, memory program can reach 1000, simple editing interface, to achieve the rapid input and output of the program, debugging more convenient.
